Thermal drain protection ¾ "
Thermal drain protection ¾ " is in stock and will be shipped as soon as it is available again
Delivery and shipping
Delivery and shipping
Processing time is typically 1 business day. Delivery for parcels is 1-3 business days. For freight forwarding, delivery time is 3-5 business days. Delivery times outside Germany vary.
Thermal drain protection ¾ "
Description
Description

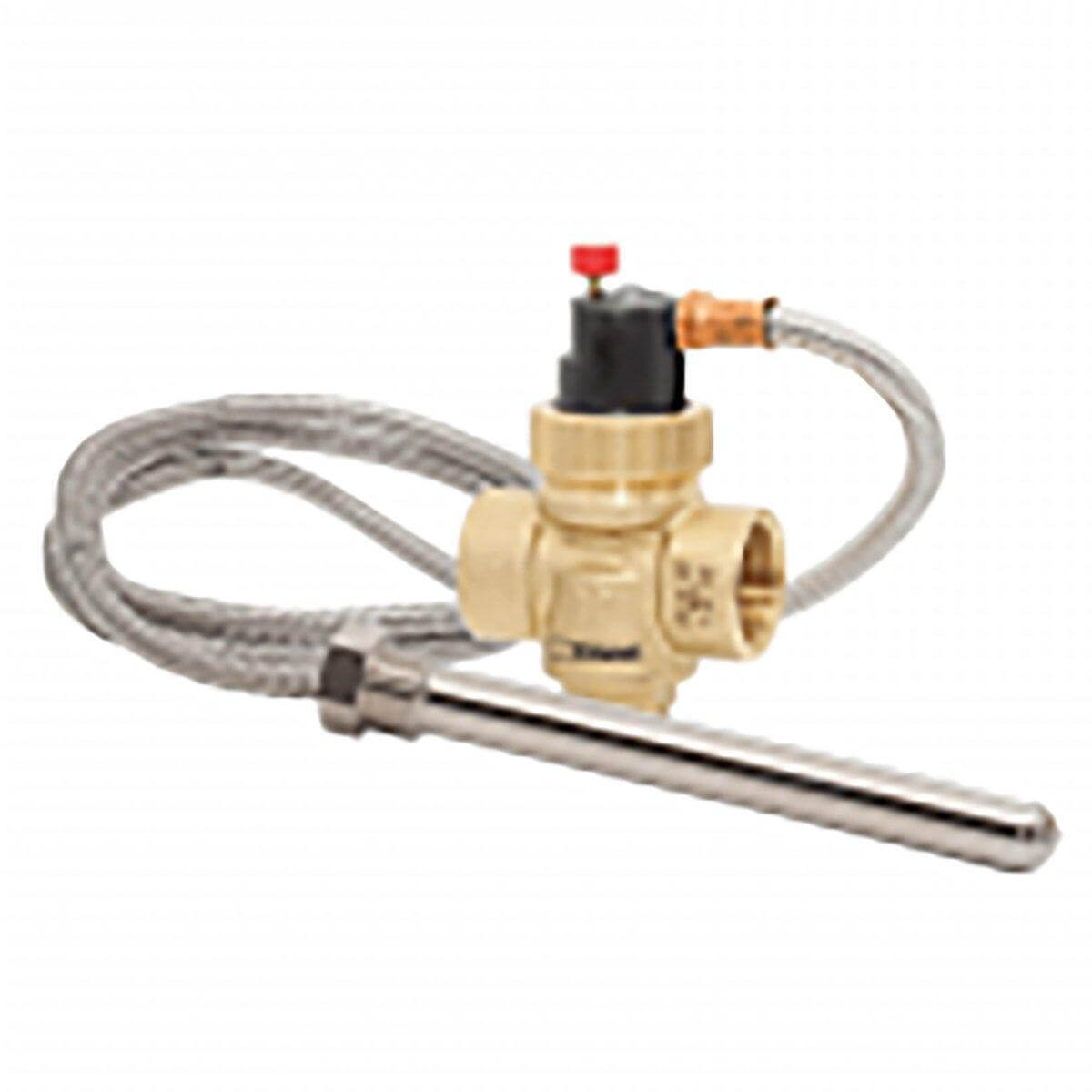

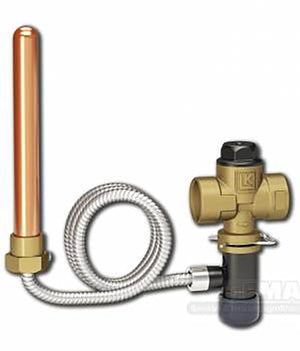

Thermal drain safety device ¾"

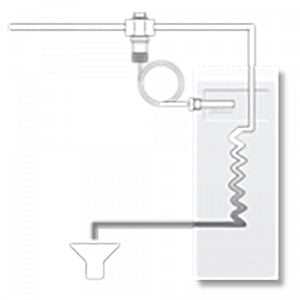

The thermal safety device protects your boiler from overheating in the event of a power or charging pump failure.
A thermal safety device according to EN12828 prevents overheating of boilers fired with solid fuels in a water-based circulating heating system.
Services:
- Opening temperature: 97±2 °C
- Operating temperature: 5 °C/110 °C
- Max. operating pressure: 10 bar
- Max. discharge capacity: 6.5 m³/h at 6 bar
- Material, valve body: EN 12165 CW617N
- Material, immersion tube: EN 12165 CW617N/Cu
- Material, spring: stainless steel
- Material, capillary tube: Cu
Product data: Thermal drain safety device
- Connection input: ¾" IG
- Connection output: ¾" IG
- Connection immersion sleeve: ½" AG
- Length of capillary tube: 1300 mm
*Technical changes reserved | Images may vary
