Drinking water tank 120 liters with 2 kW heating element

120-liter drinking water storage tank with 2 kW heating element – ​​Effective solution for hot water and domestic hot water

Overview and area of ​​application

The Drinking water reservoir With a volume of 120 liters, it offers you reliable and centralized hot water supply. Thanks to the integrated heat exchanger, you can heat both domestic hot water and... drinking water It heats efficiently, ensuring comfortable use in private households as well as in commercial settings.

The option of connecting the storage tank to a solar thermal system or a boiler makes it a flexible solution that can be optimally adapted to various heating systems. An additional 2 kW heating element also guarantees quickly available heat when external heat sources are insufficient.

Robust construction and high-quality corrosion protection

The hot water storage tank impresses not only with its performance but also with its durable construction. A high-quality enamel coating inside the tank protects against corrosion, while the large magnesium anode acts as an effective sacrificial component.

The thermal insulation made of densely foamed polyurethane optimizes energy consumption by minimizing heat loss. This ensures reliable and energy-efficient hot water heating.

Efficient heating technology and flexible control

The integrated, highly efficient heat exchanger ensures rapid and even heating of the water. External heat sources such as solar thermal systems, solid fuel boilers, wood gasification boilers, or pellet boilers allow for optimal integration of the storage tank into your heating system.

Additionally, the 2 kW heating element, which can be connected to the storage tank, allows for targeted and demand-based supplementation of the heating output. This system guarantees you the desired hot water comfort at all times and ensures a constant temperature within the required range.

Robust and efficient heating cartridge in detail

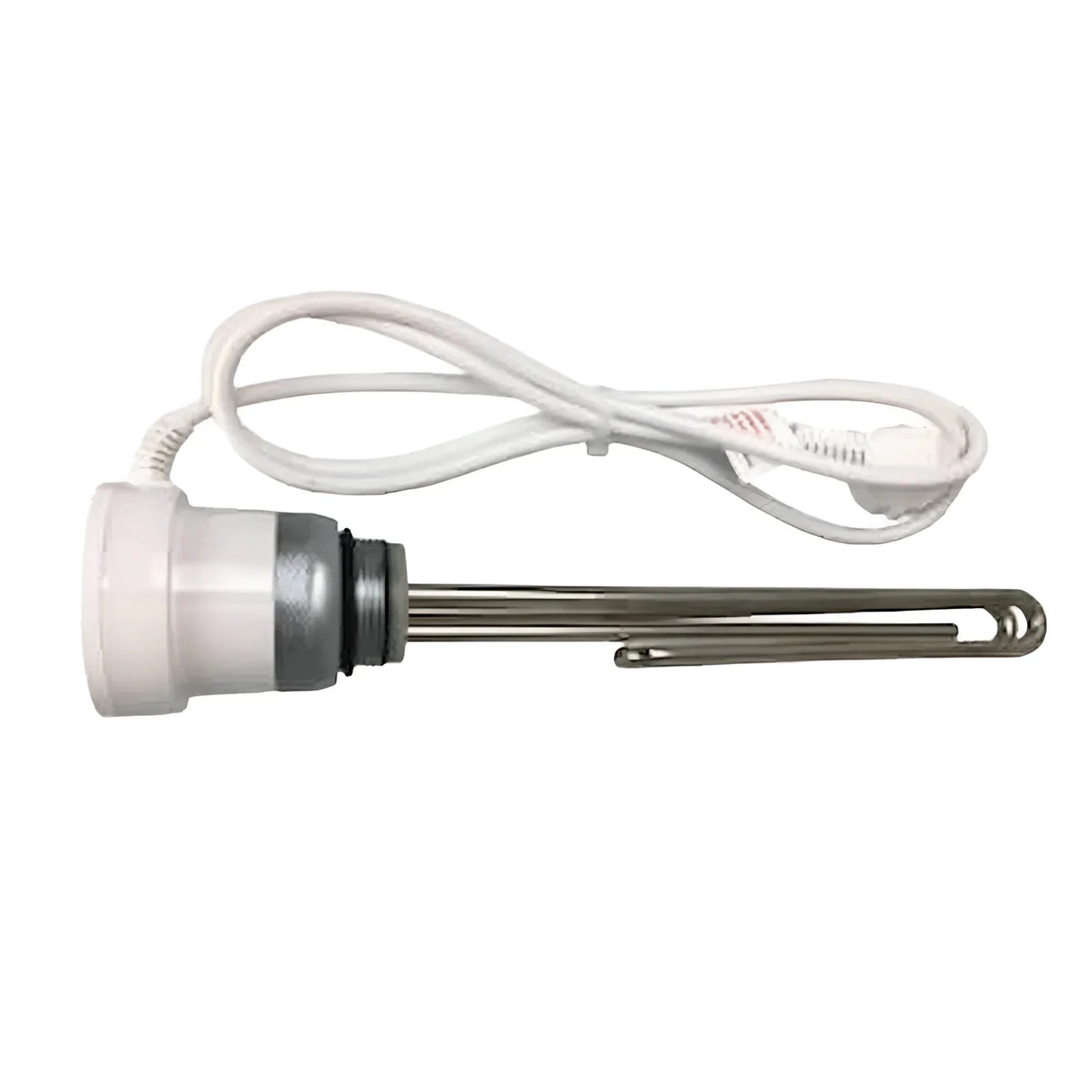

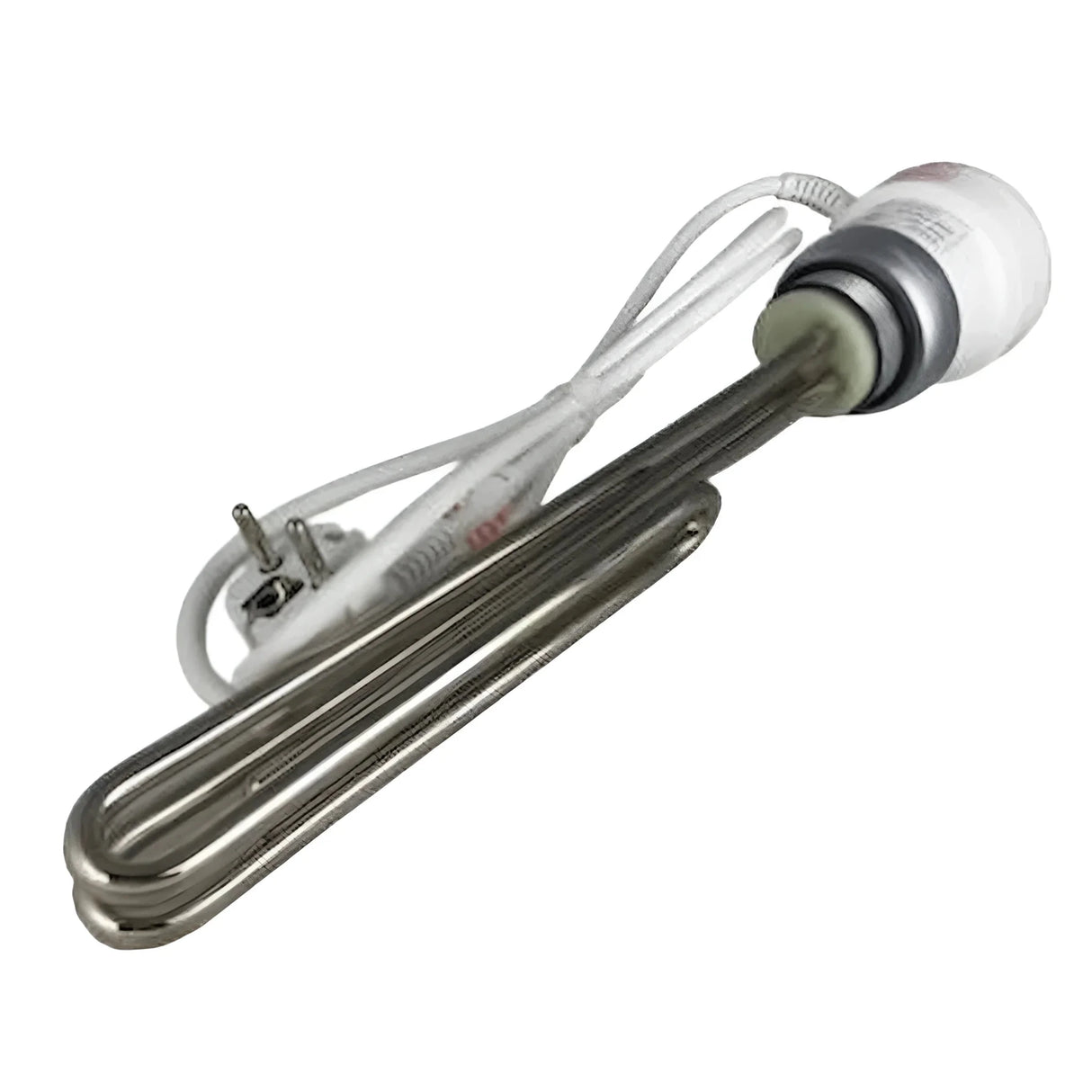

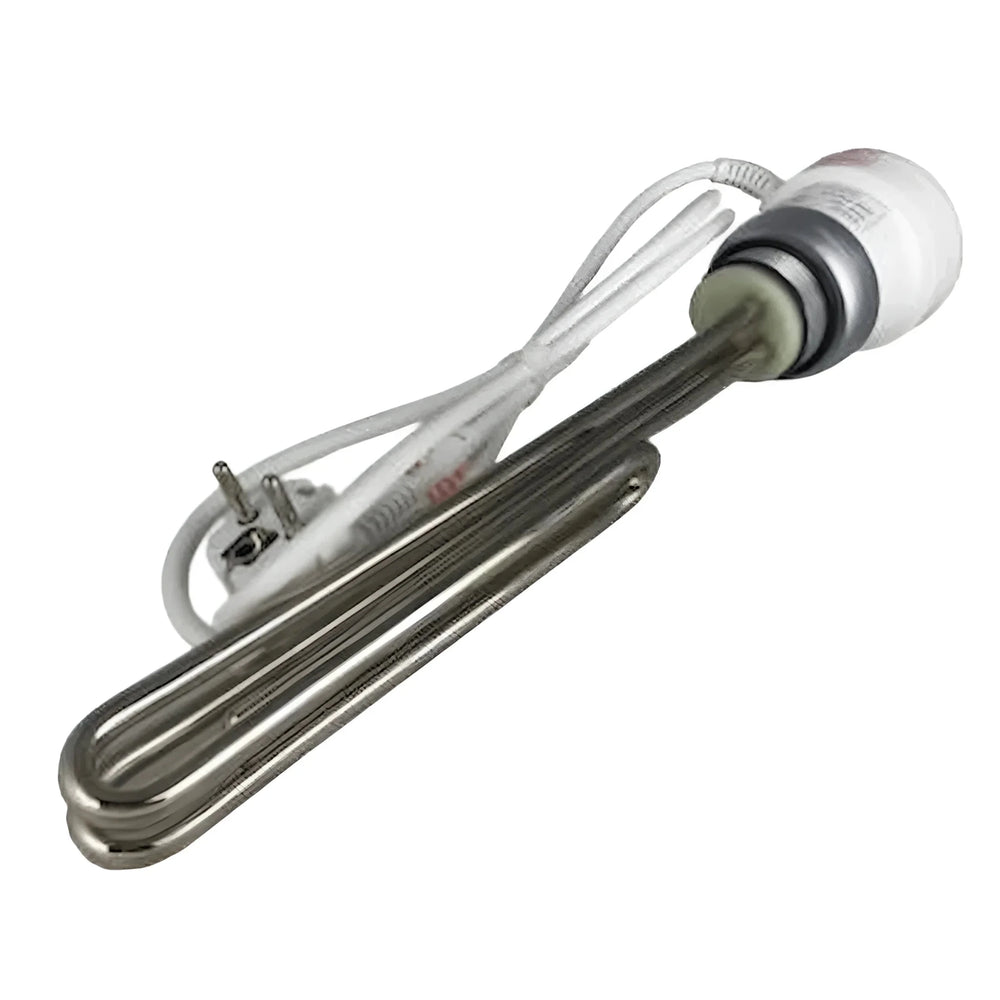

The Elektromet 2 kW heating element provides a reliable solution for hot water heating. Made of corrosion-resistant stainless steel and a robust white plastic housing, it impresses with its durability and attractive appearance.

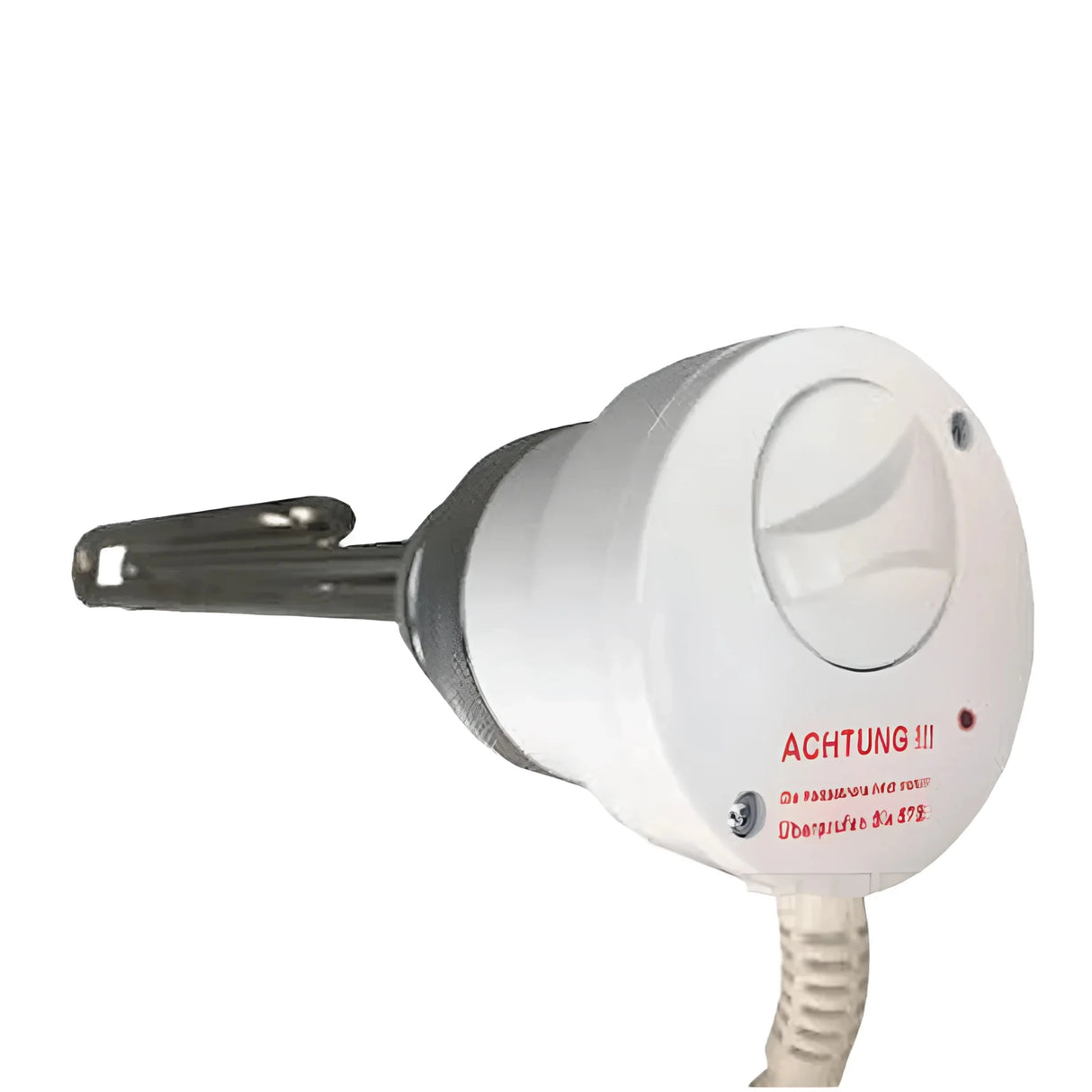

Thanks to precise temperature control in the range of 5 to 75 °C and a safety temperature limiter at 93 °C, safe operation is guaranteed. The easily adjustable switch-on hysteresis also enables energy-efficient use, optimally controlling the heating process.

Easy installation and versatile compatibility

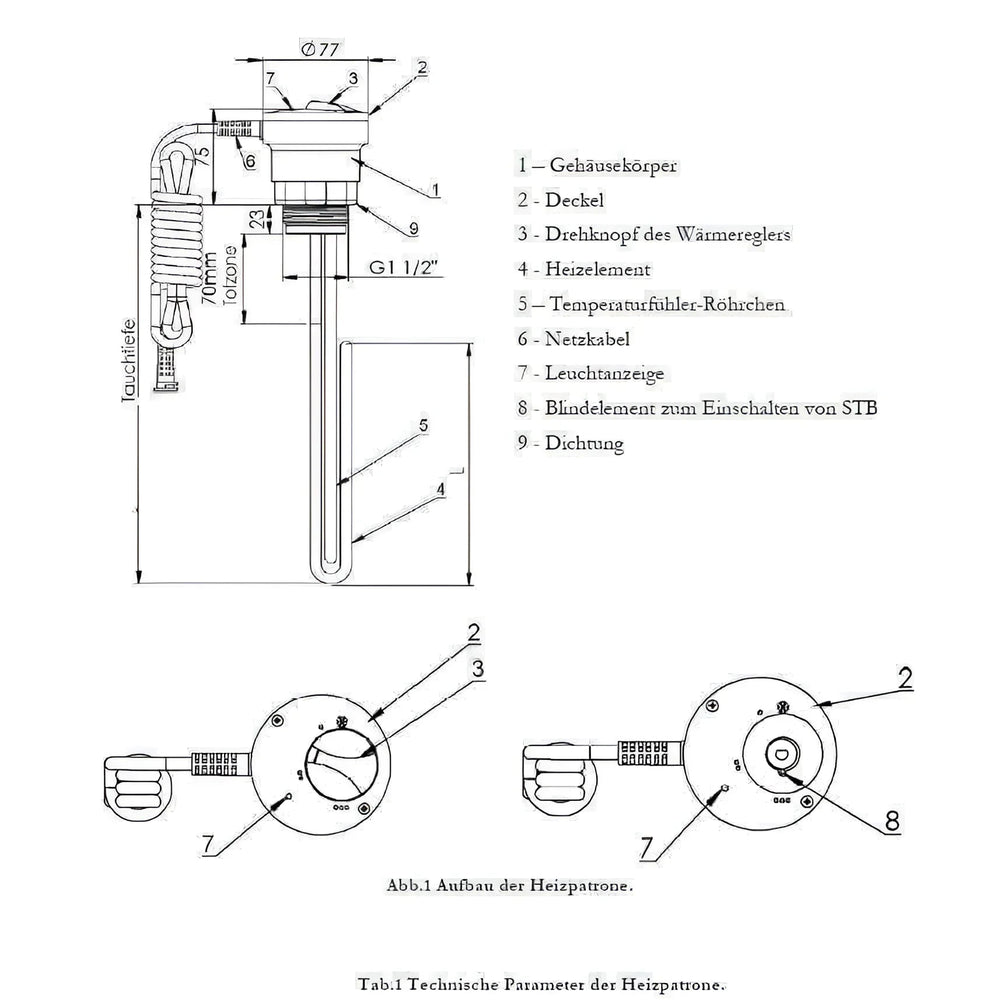

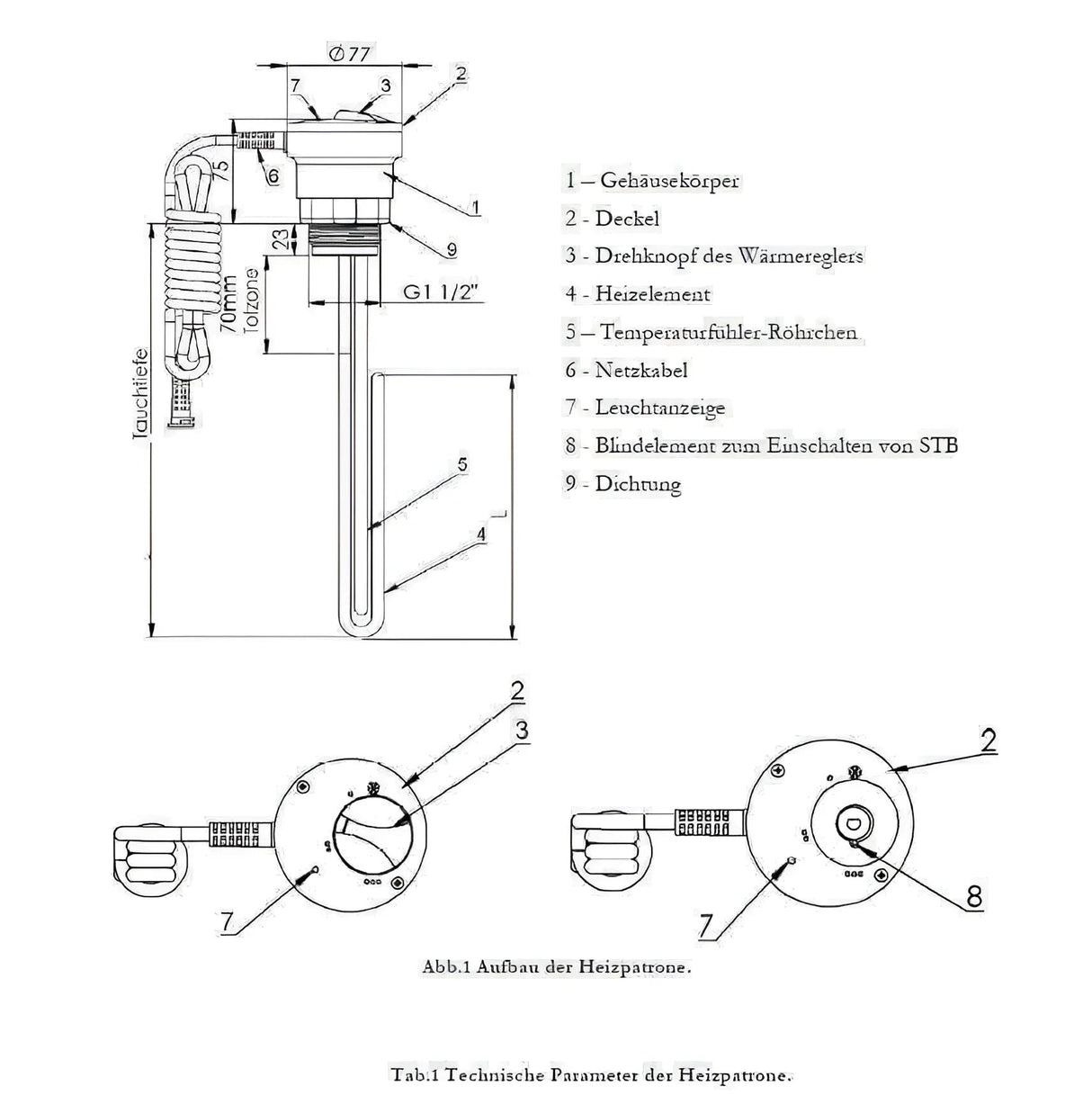

Thanks to the generously sized connection with 1 1/2" The external thread allows for easy integration of the heating element into standard domestic hot water storage tanks. The compact installation length of 300 mm and the predefined unheated length of 70 mm significantly simplify installation.

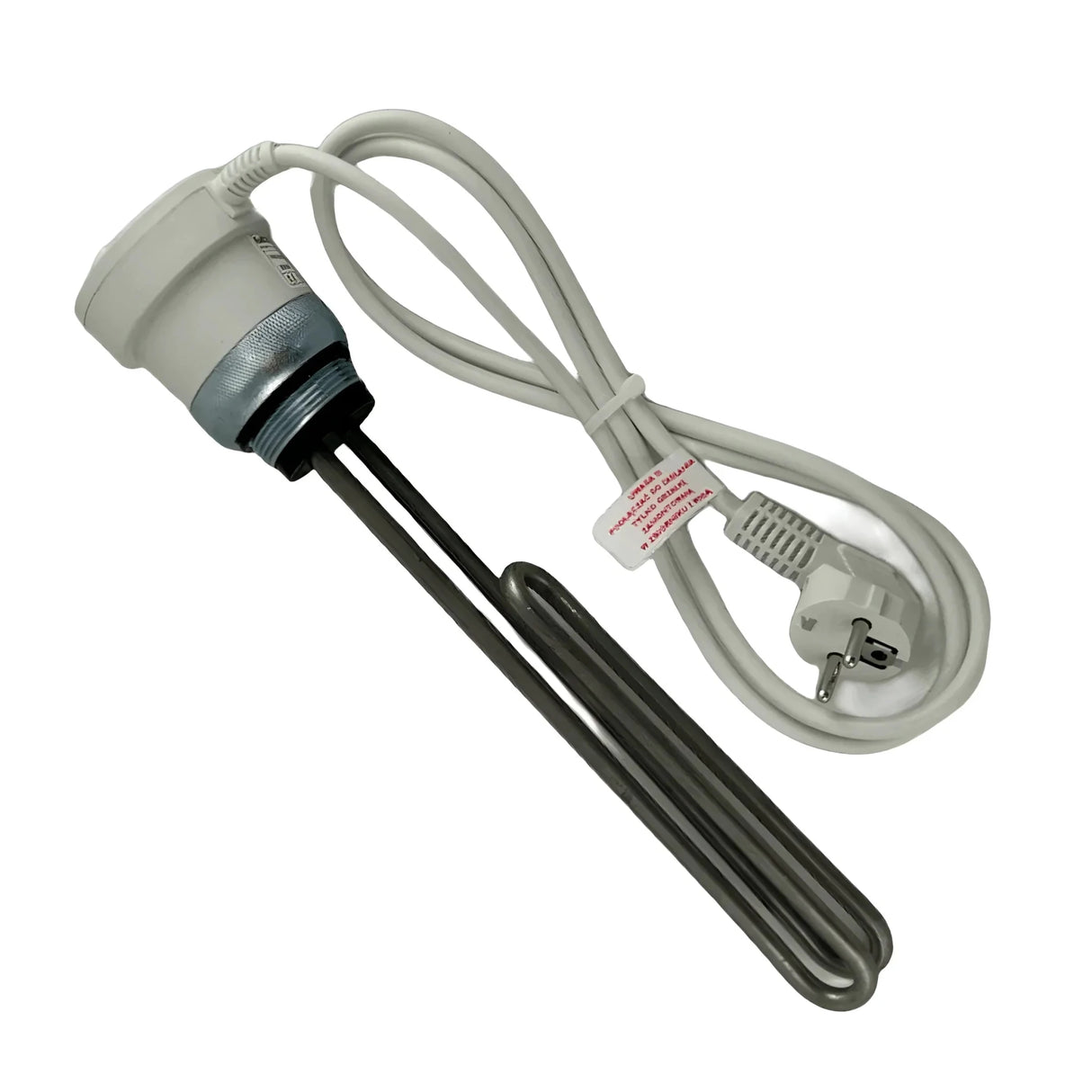

The included power cable with Schuko plug makes power supply straightforward. This solution is therefore suitable for both private and commercial use where reliable and fast hot water preparation is required.

Technical details and safety

The storage tank operates reliably at a maximum operating pressure of 6 bar and an operating temperature of up to 95 °C in the tank and 100 °C at the heat exchanger. The heat transfer surface area of ​​1.4 m² and a heat exchanger volume of 6.1 liters guarantee rapid heat energy transfer.

The heating cartridge also meets demanding safety standards: With a protection rating of IPX4, it is protected against splashing water and impresses with its quality and safety even at a maximum operating pressure of 10 bar.This way you will experience not only effective, but also absolutely reliable hot water preparation.

Technical data

Technical data for hot water storage tanks

• Volume: 120 liters
• Heat exchanger surface area: 1.4 m²
• Heat exchanger capacity: 6.1 liters
• Heating flow and return connections: 3/4" AG
• Domestic hot water supply and return connections: 3/4" AG
• Circulation connection: 3/4" AG
• Magnesium anode connection: 1 1/4" IG
• Connection for electric heating: 1 1/2" IG
• Thermal insulation: Polyurethane foam (PUR)
• Maximum operating temperature of storage tank: 95 °C
• Maximum operating pressure of storage tank/heat exchanger: 6 bar
• Max. operating temperature heat exchanger 100 °C
• Loss: 32 watts
• Dimensions with insulation (diameter x height): 565 x 1045 mm
• Weight (empty): 71 kg

Technical data heating element

• Heating output: 2 kW
• Temperature control: 5-75°C
• Switch-on hysteresis: 7-10°C
• Installation length: 300 mm
• Unheated length: 70 mm
• Safety temperature limiter: 93°C
• Connection: 1 1/2" external thread
• Protection rating: IPX4
• Maximum operating pressure: 10 bar
• Outer shell material: Plastic, white
• Heating coil material: Alloy 825
• Power supply: single-phase 230 V/16 A
• Cable length: 1.5 meters with Schuko plug

Scope of delivery

• Drinking water storage tank 120 liters
• Heating element 2 kW with 1 1/2" AG
• Operating instructions & Assembly instructions

Download

• Operating instructions for drinking water storage tank
• Operating instructions for heating element
