Return temperature booster ESBE LTC361 60°C loading valve unit
The Charging valve unit The ESBE LTC300 series is used for automatic and efficient loading of buffer tanks and to protect the boiler from excessively low return temperatures.
- high and constant return temperature
-Efficiency of the boiler increased
-Tar formation reduced
-Extended service life

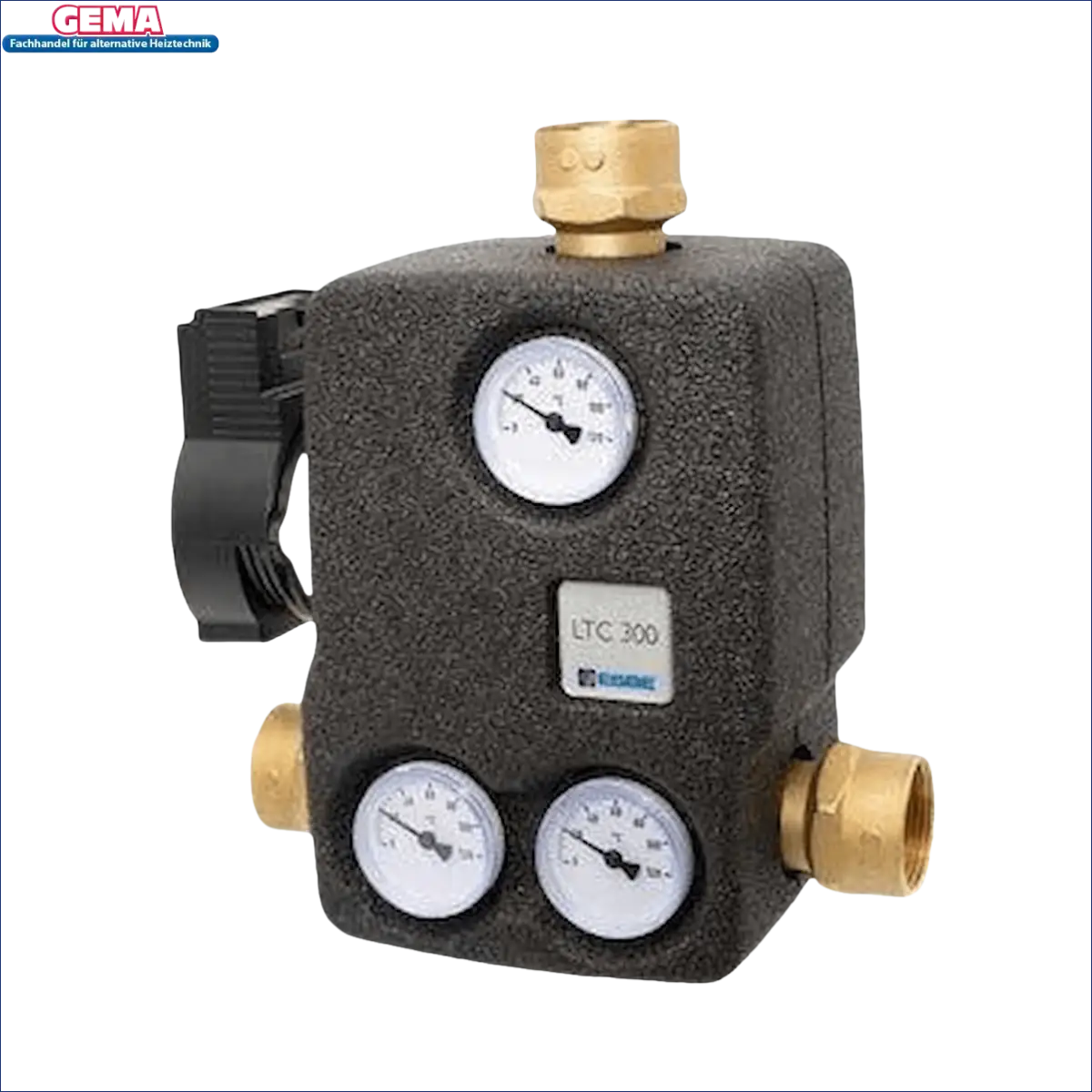

The Esbe LTC361 loading valve unit is used in heating systems where solid fuel boilers are used to efficiently load buffer storage tanks.
function
The Esbe LTC361 loading valve unit is equipped with an integrated pump and thermal valve, which simplifies operation and installation.
easy assembly
Because the Esbe LTC361 regulates between two connections, no additional valve is required.
A 3-meter-long power cable ensures flexibility when placing the thermal charging unit. This return flow booster also features a fully insulated shell and an easy-to-read thermometer.
For optimal loading of the buffer tank, the pump characteristic curve can be individually adapted to your heating system.
An emergency bypass function enables gravity circulation between the fireplace and the buffer tank in the event of a power failure (deactivated, can be activated if required).
The ten-minute ventilation function uses varying speeds to ensure that air escapes from the system and is discharged via a venting device.
Technical data return temperature increase ESBE LTC361 60°C:
- Name: LTC361
- DN: 32
- Connection adapter G 1¼"
- Power: 80 W
- Performance (max ∆t): 30 °C
- Opening temperature: 60 ± 5 °C
- Weight: 4.40 kg
- Pressure level: PN 6
- Medium temperature: max. 110°C/min. 0°C
- Ambient temperature: max. 60°C/min. 0°C
- Leakage rate A - AB: max. 0.5% of the max. flow (Qmax)
- Leakage rate B - AB: max. 3% of the max. flow (Qmax)
- Flow coefficient: 100 Kv/Kvmin
- Supply voltage: 230 ± 10% V AC, 50 Hz
- Power consumption: 43 W
- Energy rating: A
- Energy Efficiency Index (EEI): < 0.20
- Connection cable: 3 m
- Connections: internal thread (G), ISO 228/1
- Valve body material: ductile iron EN-JS 1050
